Mobility made possible.

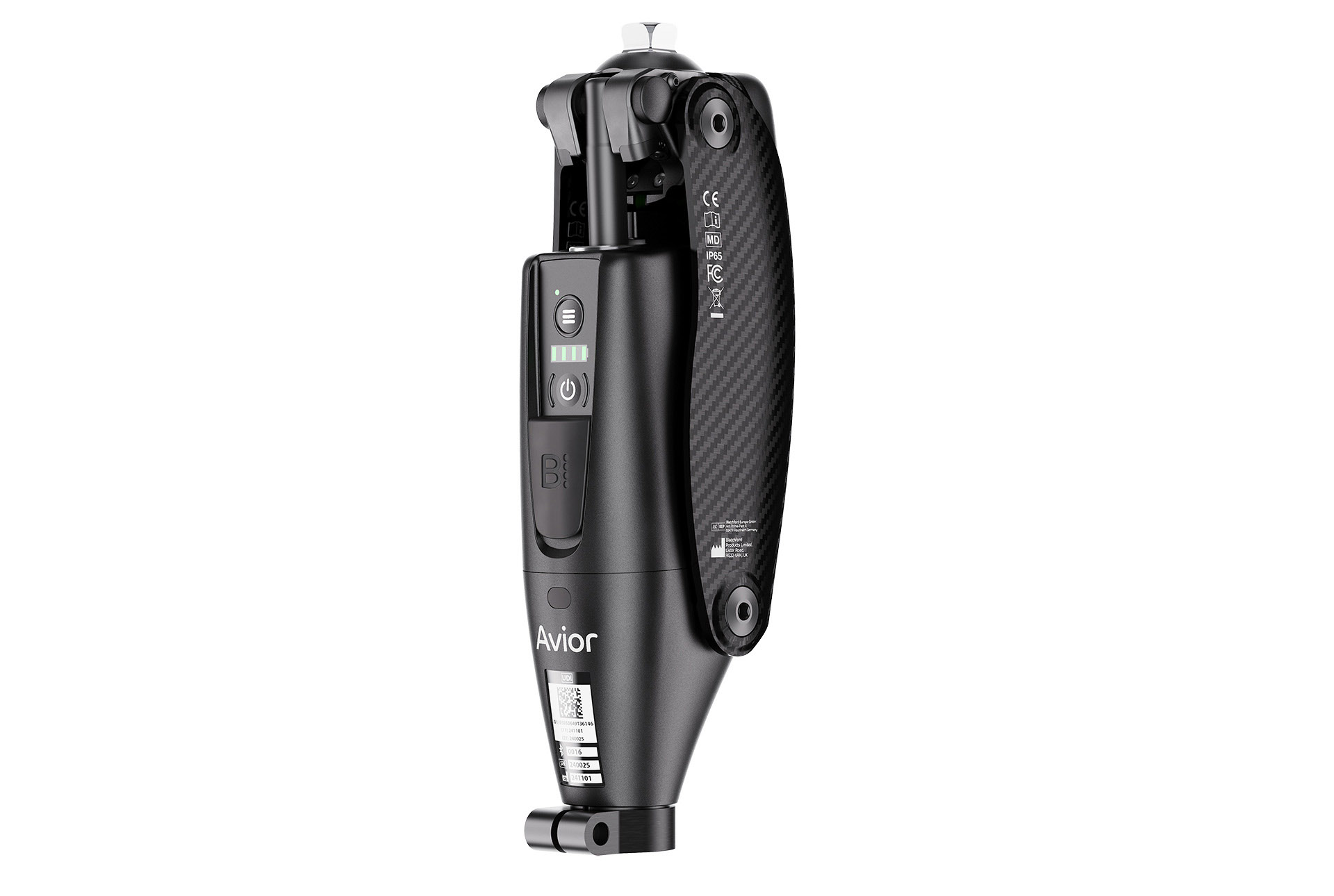

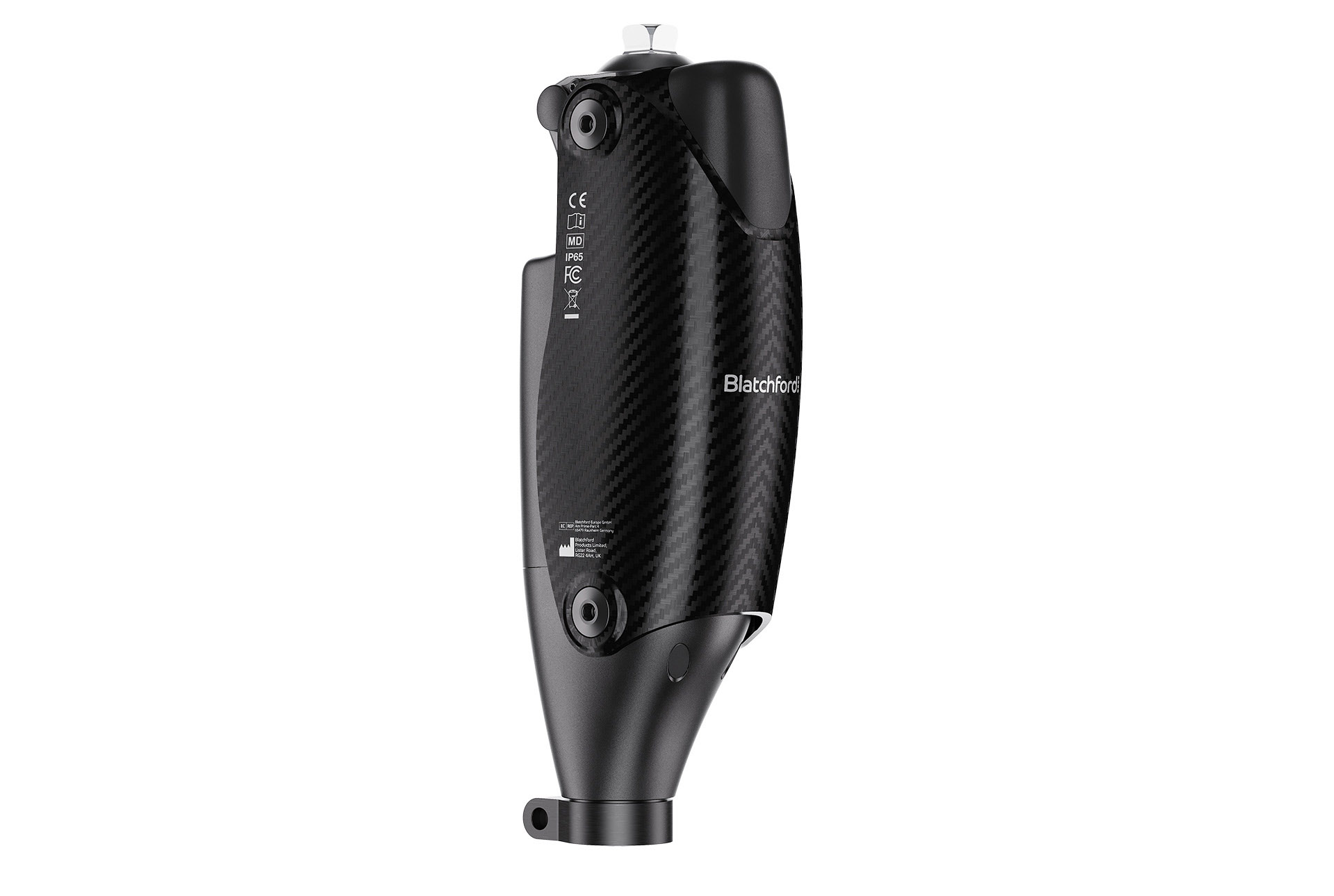

Avior

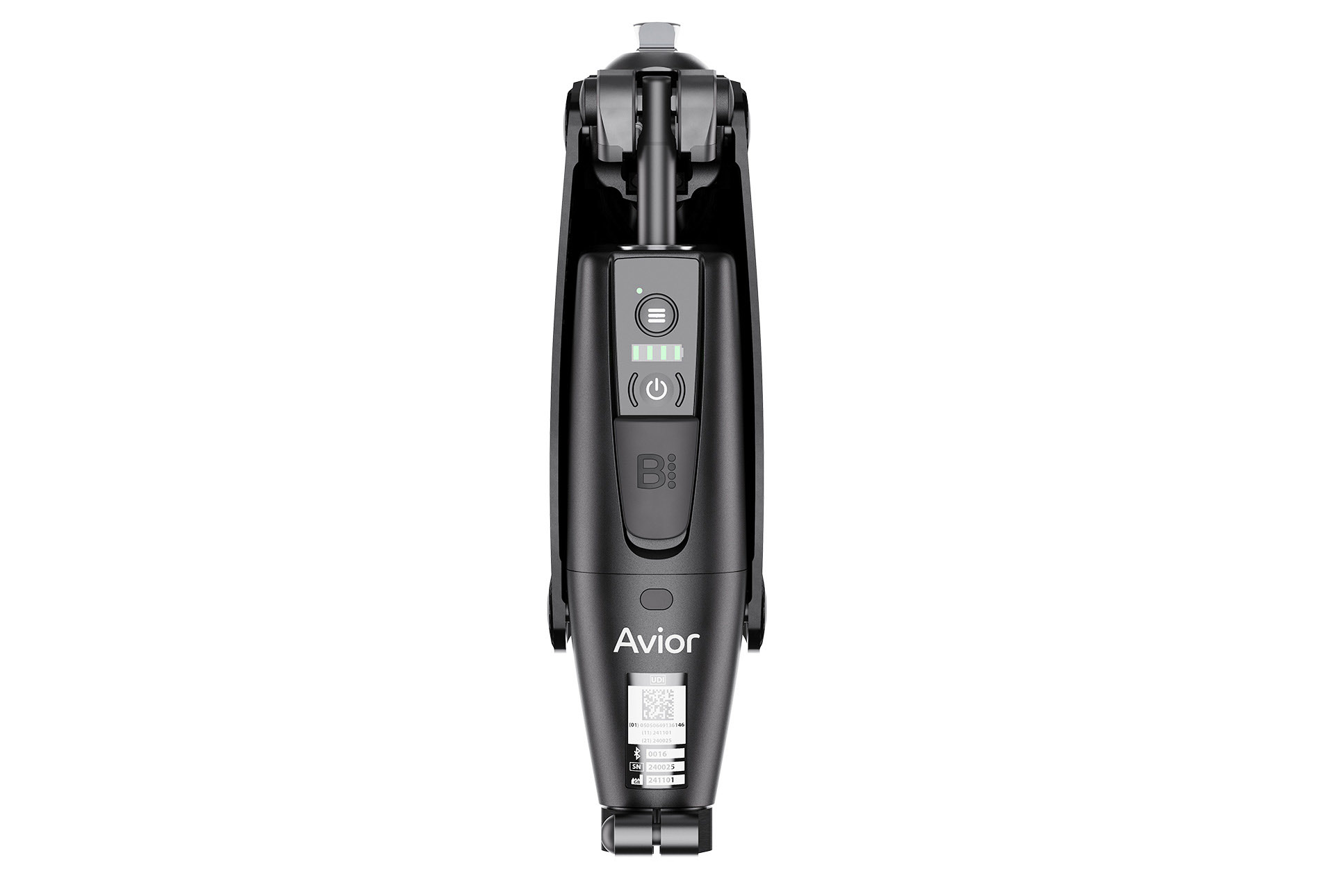

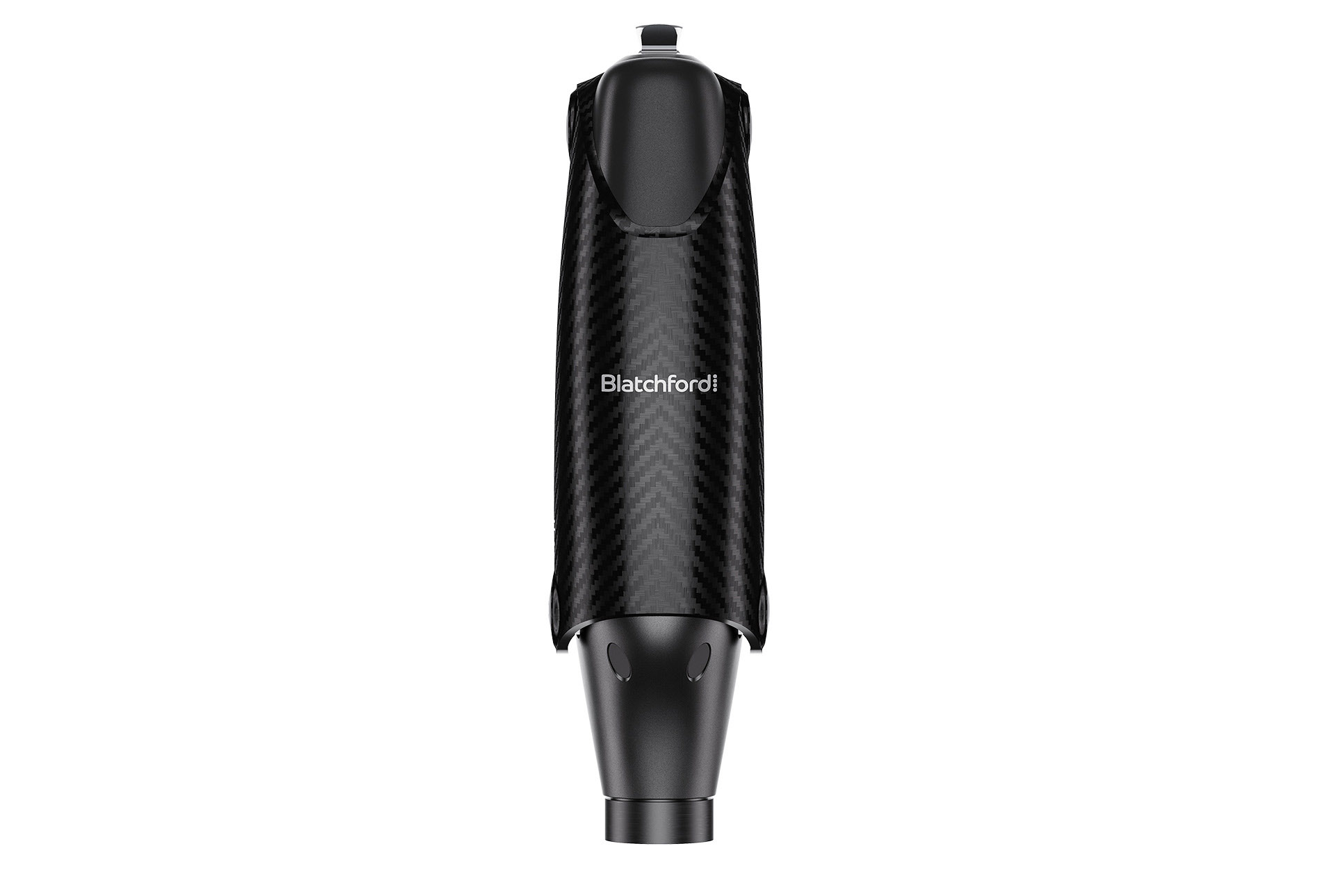

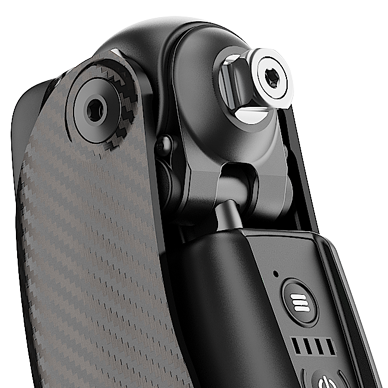

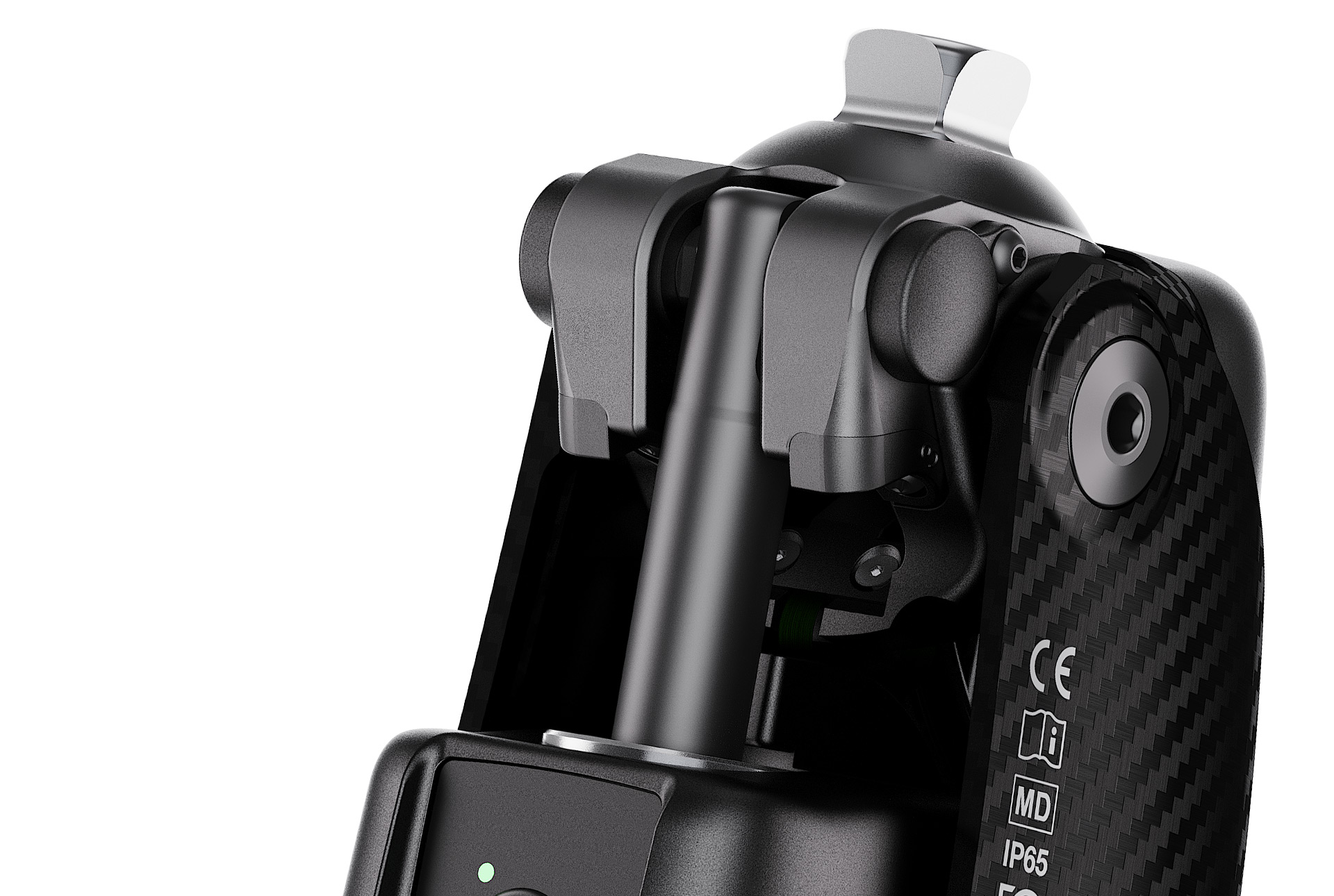

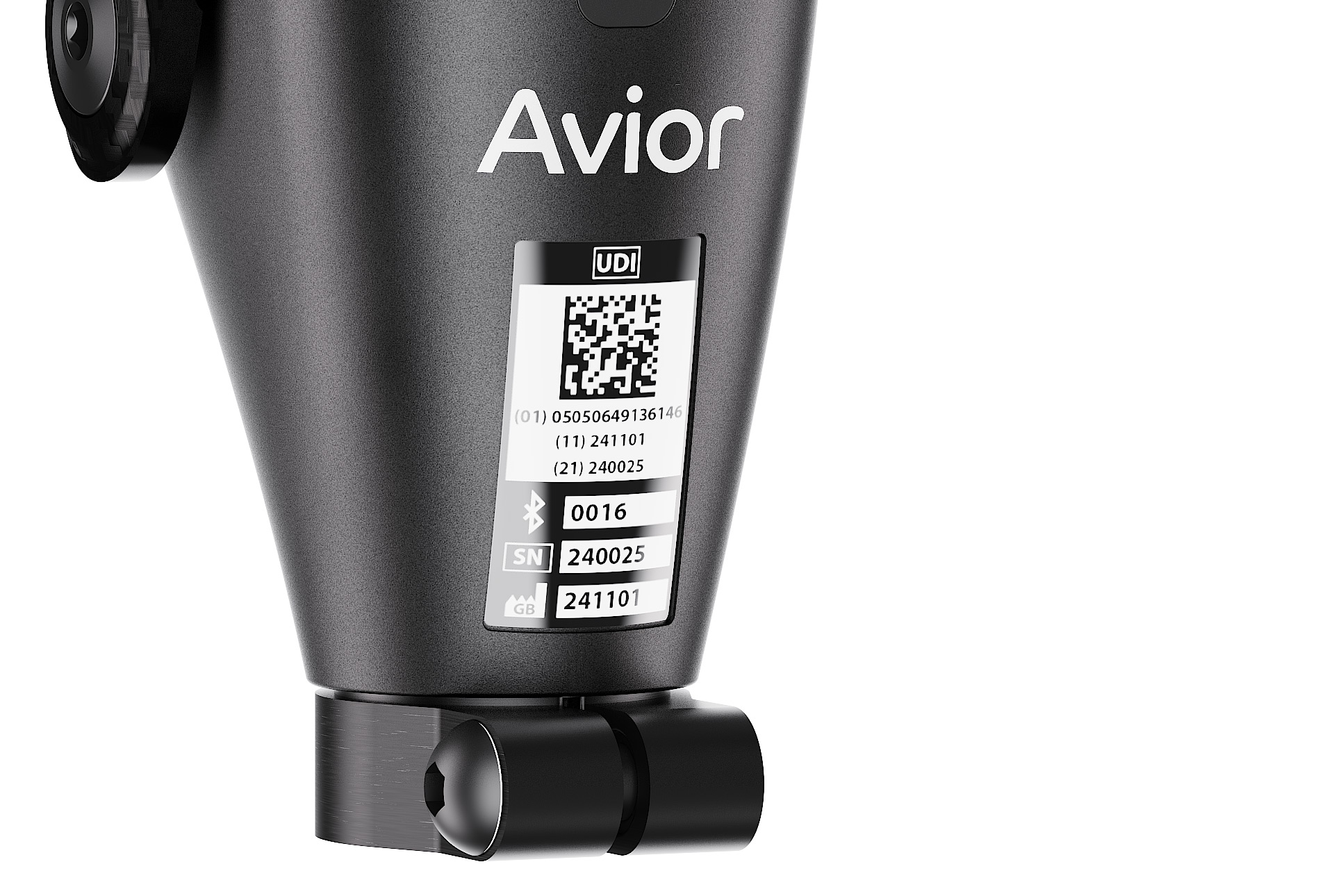

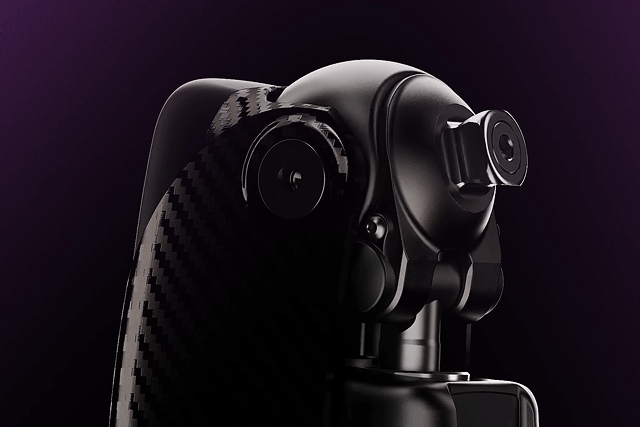

Meet Avior, our next-generation microprocessor-controlled prosthetic knee that’s redefining mobility for lower-activity individuals. Avior delivers stability, safety, and a smooth walking experience, perfect for new amputees, all powered by our ground-breaking biomimetic design philosophy. Then as wearers improve and grow in confidence, Avior evolves with them.
- Activity/Mobility Level: 1-2

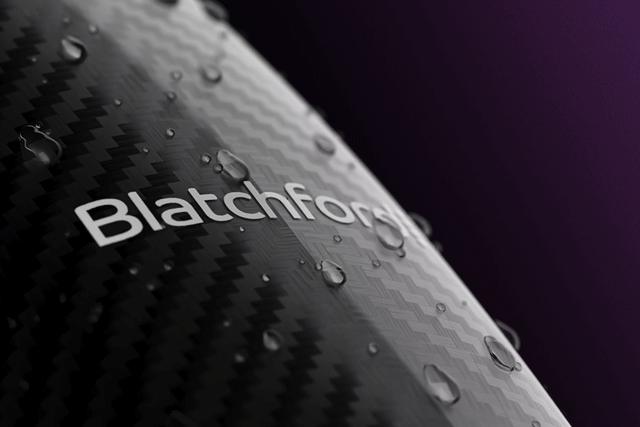

- IP Rating: IP65

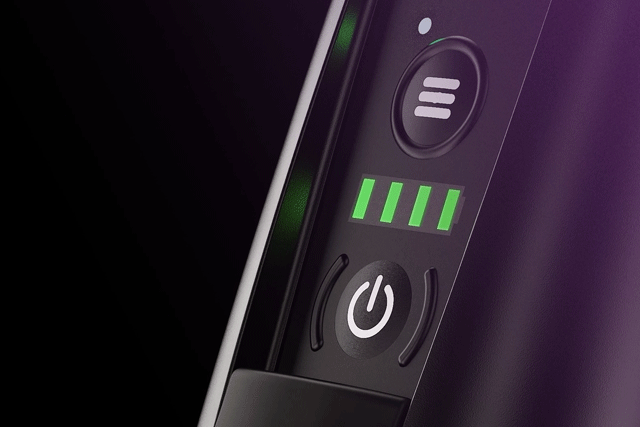

- Battery Life: Up to 48 hours*
“Avior is really easy to use. It allows me to get on with the things I love, like having friends around for dinner, or getting out into the garden for a stroll and a chat.”
- Denise

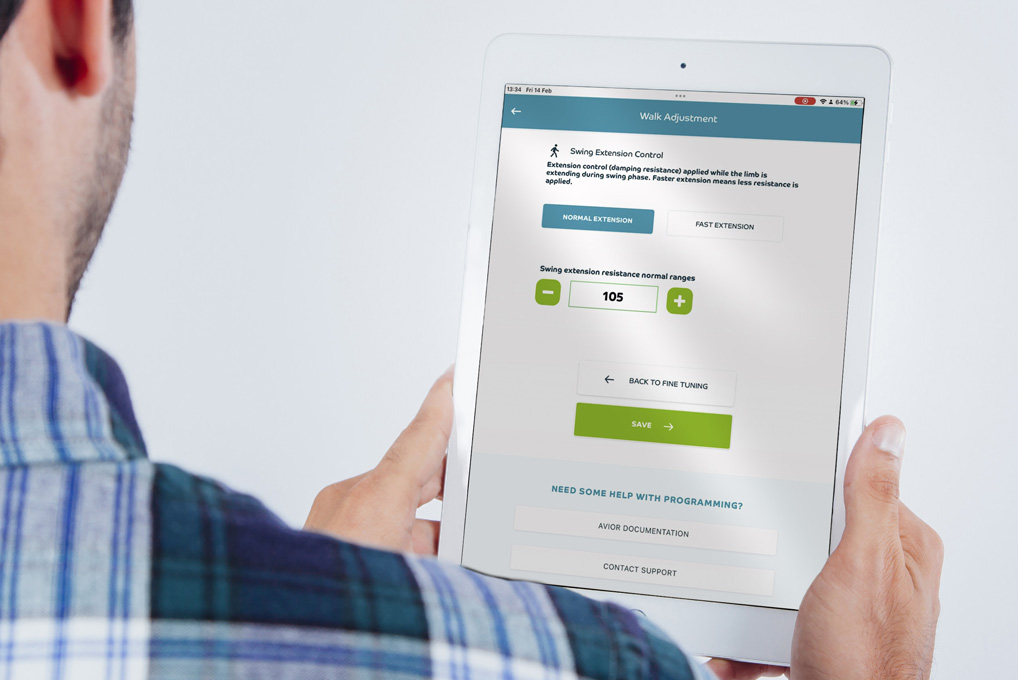

Life isn’t one-size-fits-all, and neither is Avior - go beyond preset modes

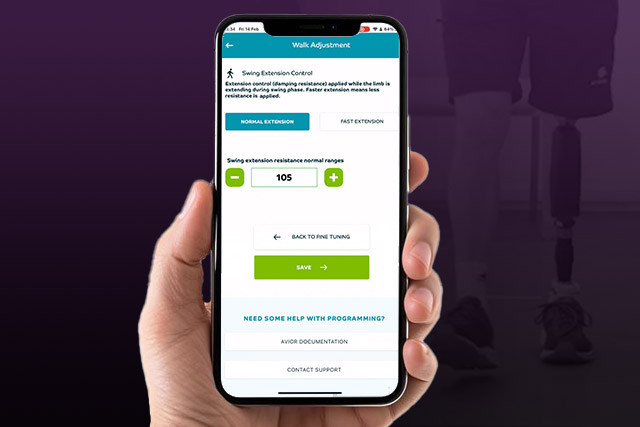

Each patient is unique, which is why Avior allows you to tailor and fine-tune key features and settings to individual needs and clinical requirements, supporting wearers and ensuring confidence at every step of the journey.
^Wearers must download the Blatchford SMARTSTEP® app to sync device data. Wearers need to connect to their Avior device as often as possible. | †Upon release, only the Blatchford team will be authorised to perform OTA updates.
Technical Info
Technical Info
- Activity/Mobility Level: 1-2

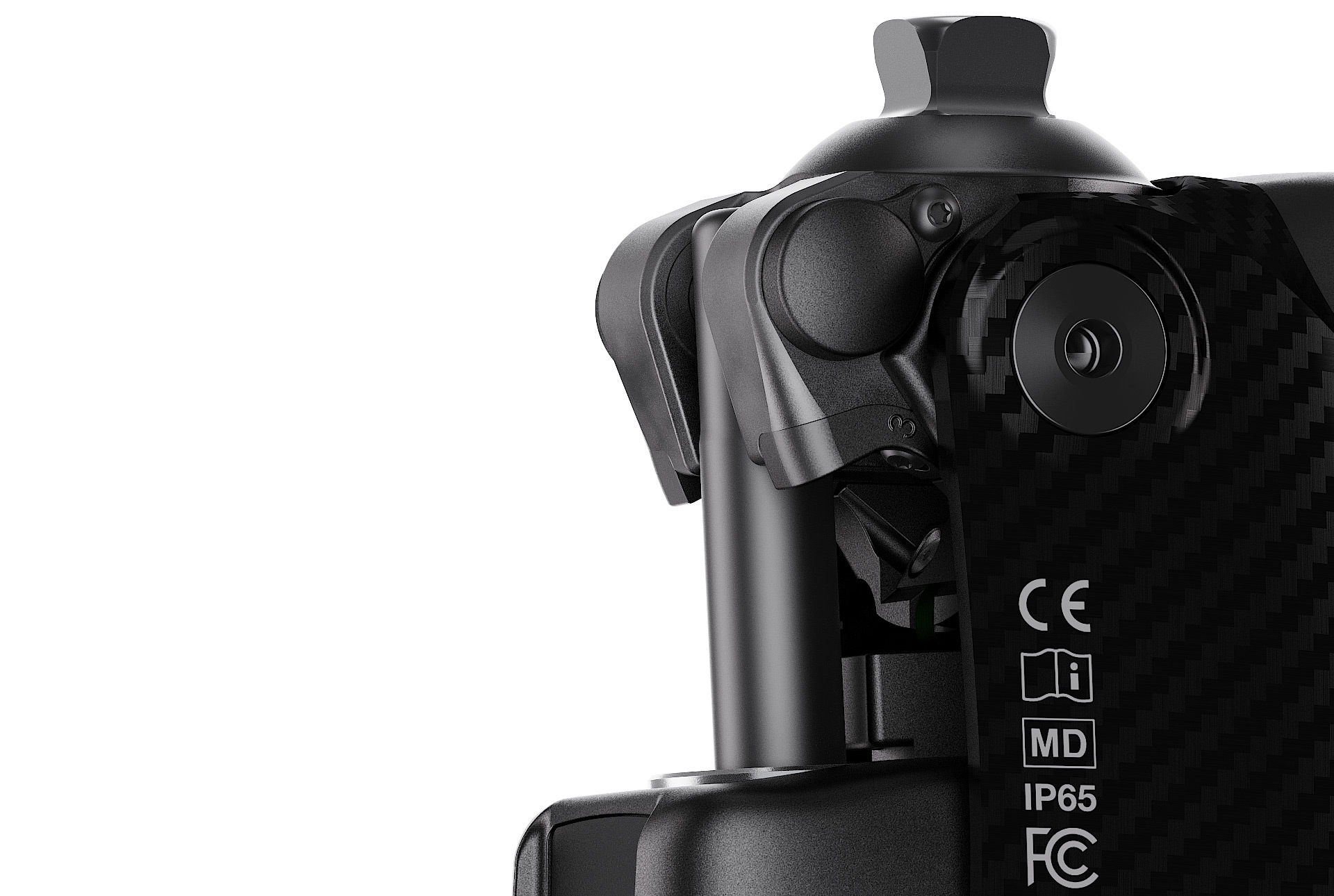

- IP Rating: IP65
- Battery Life: Up to 48 hours*
- Max User Weight: 125kg / 275lbs / 19st 6lbs
- Amputation Level: Transfemoral Amputation (above the knee)
- Min User Weight: 44kg / 97lb / 6st 9lbs
- Min User Height: 150cm / 4ft 11"
- Product Build Height: 294mm
- Component Weight: 1.39kg / 3lb 1oz
- Knee Flexion Angle: Max 130 degrees
- Proximal Adaptor: Fixed Pyramid or M36 Thread
- Proximal Alignment Attachment: Male Pyramid (Blatchford)
- Distal Alignment Attachment: Ø 30mm Tube clamp connector

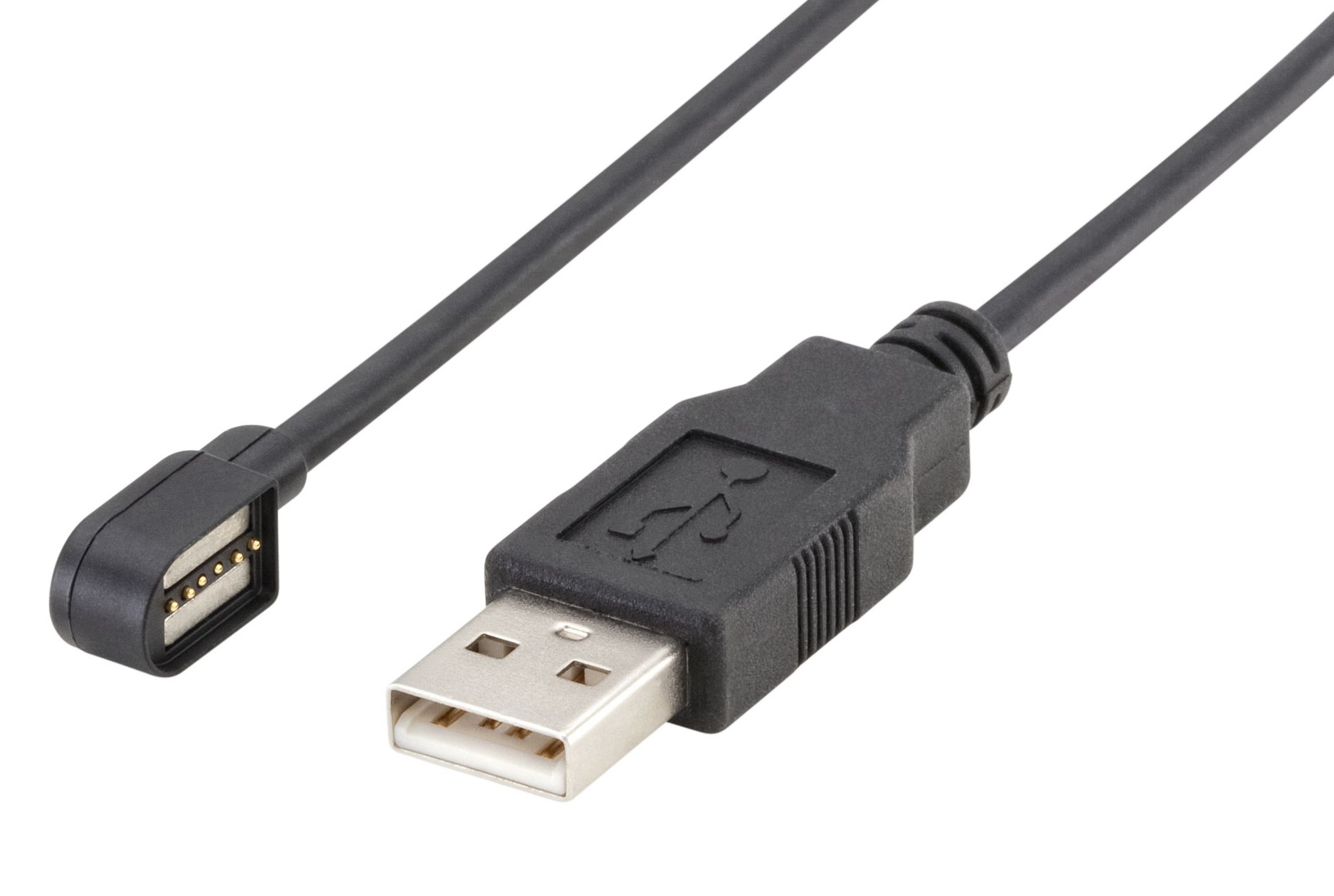

- Charger Type: Magnetic USB-A
- Charging Time: Typical 4 hours, Max 6 hours
- Bluetooth® Connectivity: Yes
*Battery life is dependent on charge and usage
Key Features
Key Features of Avior
Avior Resources
-
Brochures & Datasheets
-

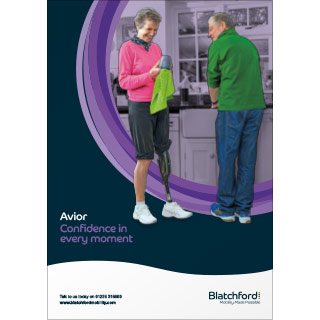

Avior Product Brochure for Clinicians
-
- Reimbursement Resources
-
Physio Resources
-
Avior Physiotherapy Booklet
-
Compatible Products

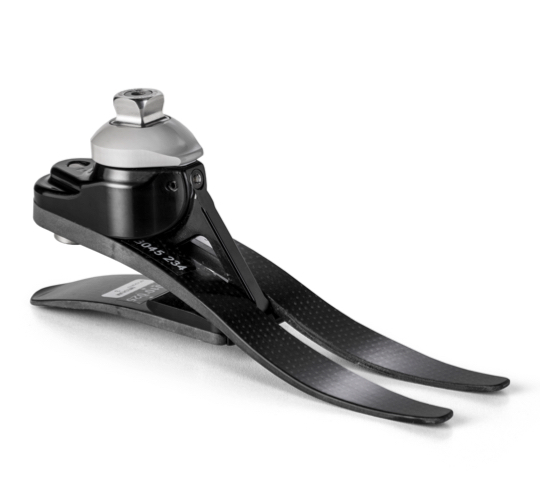

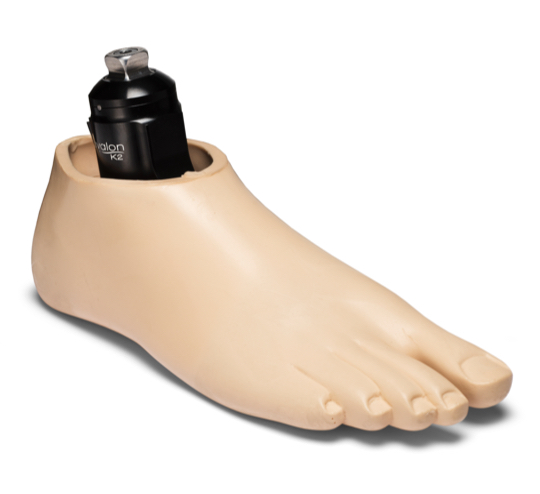

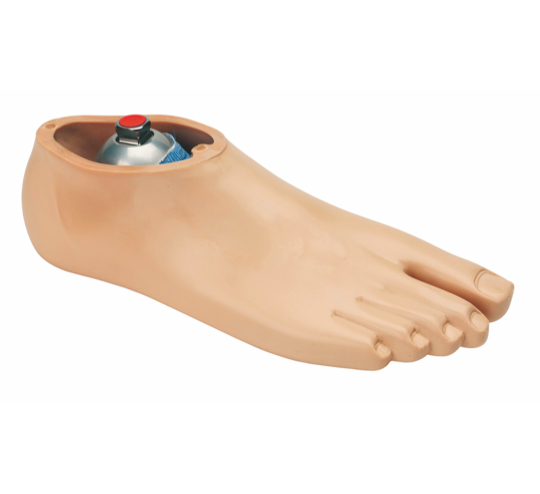

The Avior microprocessor knee offers tested & approved compatibility with a range of Blatchford prosthetic feet.

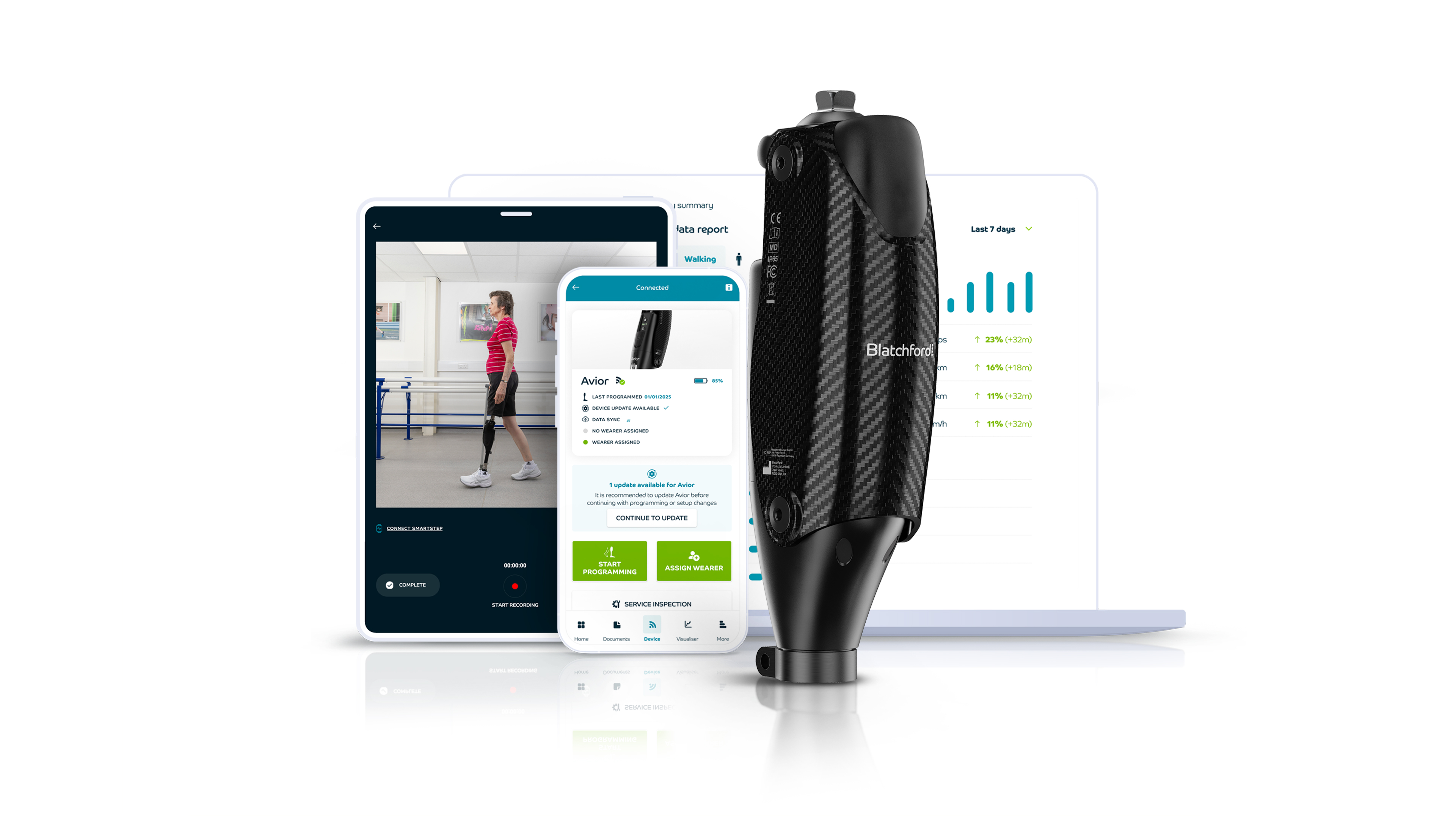

Introducing SMARTSTEP®
SMARTSTEP® is our cutting-edge digital care management platform developed exclusively by Blatchford and built into our prosthetic and orthotic devices.
Designed to provide Healthcare Professionals and wearers with access to detailed device data to improve outcomes, reduce rehab times and simplify care delivery.

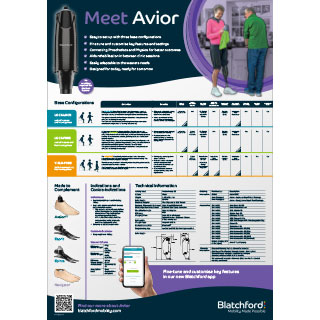

NHS funding policy for MPKs

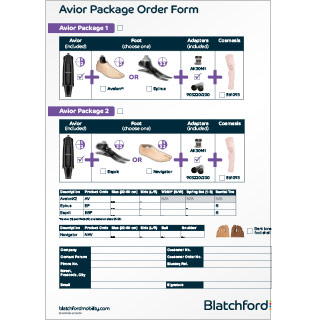

The NHS England Clinical Commissioning Policy for microprocessor-controlled knees means that MPK’s can be prescribed to patients at specialist rehabilitation centres. The policy aims to enhance quality of life by improving patient choice of prosthetic componentry based upon individual needs. Blatchford has a range of Avior packages available for NHS clinics in England that enable patients to be prescribed with an Avior MPK plus a range of Blatchford prosthetic feet for a single price, to ensure the best clinical solution for patients with above knee amputation.
FAQs
-
What is the service interval for Avior?
No service is required within the 3-year warranty period. If an extended warranty is purchased, Avior should be serviced between 30 and 36 months.
-
Are trial units available?
Yes, please get in touch with your sales representative to arrange.
-
How does the user switch between configurations?
The user does not switch between configurations. Configuration set up is programmed by the clinician.
-
Does IP65 cover salt & chlorinated water?
No. Fresh water only.
-
Does Avior have more sensors than Orion3?
Yes
-
In addition to heel load, what else does the knee look for to release to sit?
Posterior inclination and deceleration of posterior angular velocity.
-
Which countries have reimbursement for K2 MPK use?
The United States is the largest country with a K2 MPK reimbursement program. Germany also reimburses for this patient category.
-
Is a long-term rental scheme available?
Yes, rental units are available. Please contact your sales representative to discuss options.
-
Is it a hybrid cylinder like ORION3? Why is it different?
Avior utilises a hydraulic cylinder. This design is ideal to accommodate the features and walking speeds required from the intended patient group.
The main differences are:
Orion 3 & Linx
- Hybrid pneumatic/hydraulic cylinder to control swing phase.
-
5 swing speeds controlled by pneumatic portion of the cylinder .
-
Hydraulic aspect only controls swing flexion with minimal effect on extension.
Avior’s hydraulic cylinder assists and controls the swing phase
- The cylinder has a spring energised accumulator that provides extension assist.
- The hydraulic cylinder controls both flexion and extension resistances allowing control of swing extension speed.
-
How long with physio does it take a user to learn features?
This will depend on the Physio; we have supporting materials and training guides to help them.
