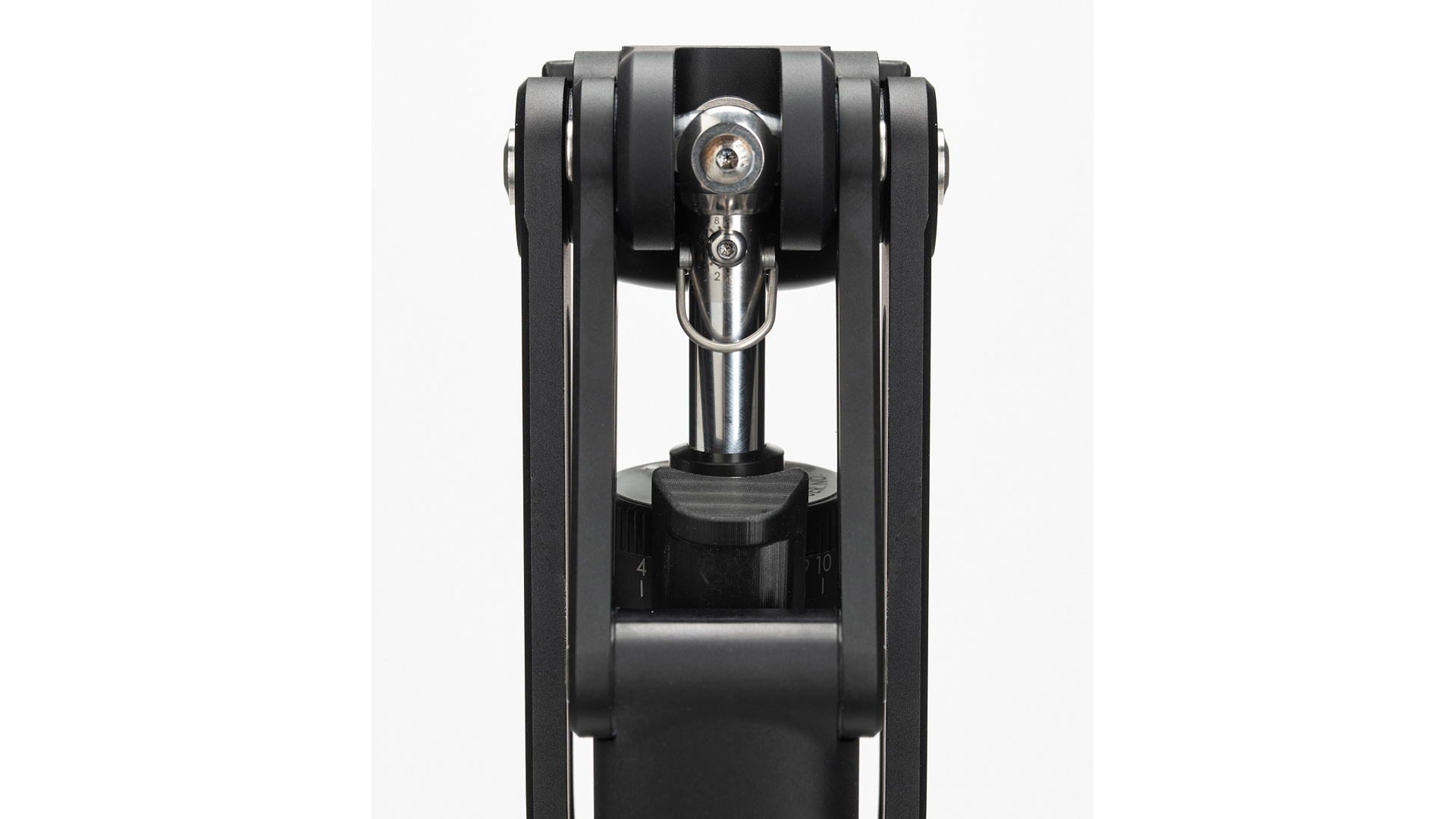

KX06 Carousel14
Jack Eyers KX06 Gym2
Jack Eyers KX06 Outdoor Stairs5
KX06 Carousel11
KX06 Carousel17
Jack Eyers KX06 Gym6 Flexion Lock Mode
Jack Eyers KX06 Gym4
KX06 Carousel16
Jack Eyers KX06 Gym5
Jack Eyers KX06 Gym9
KX06 Carousel15
Jack Eyers KX06 Outdoor Slope1
Jack Eyers KX06 Gym3
KX06 Carousel4
Jack Eyers KX06 Gym10
Jack Eyers KX06 Outdoor Stairs6
Jack Eyers KX06 Gym8
KX06 Carousel14
Jack Eyers KX06 Gym2
Jack Eyers KX06 Outdoor Stairs5
KX06 Carousel11

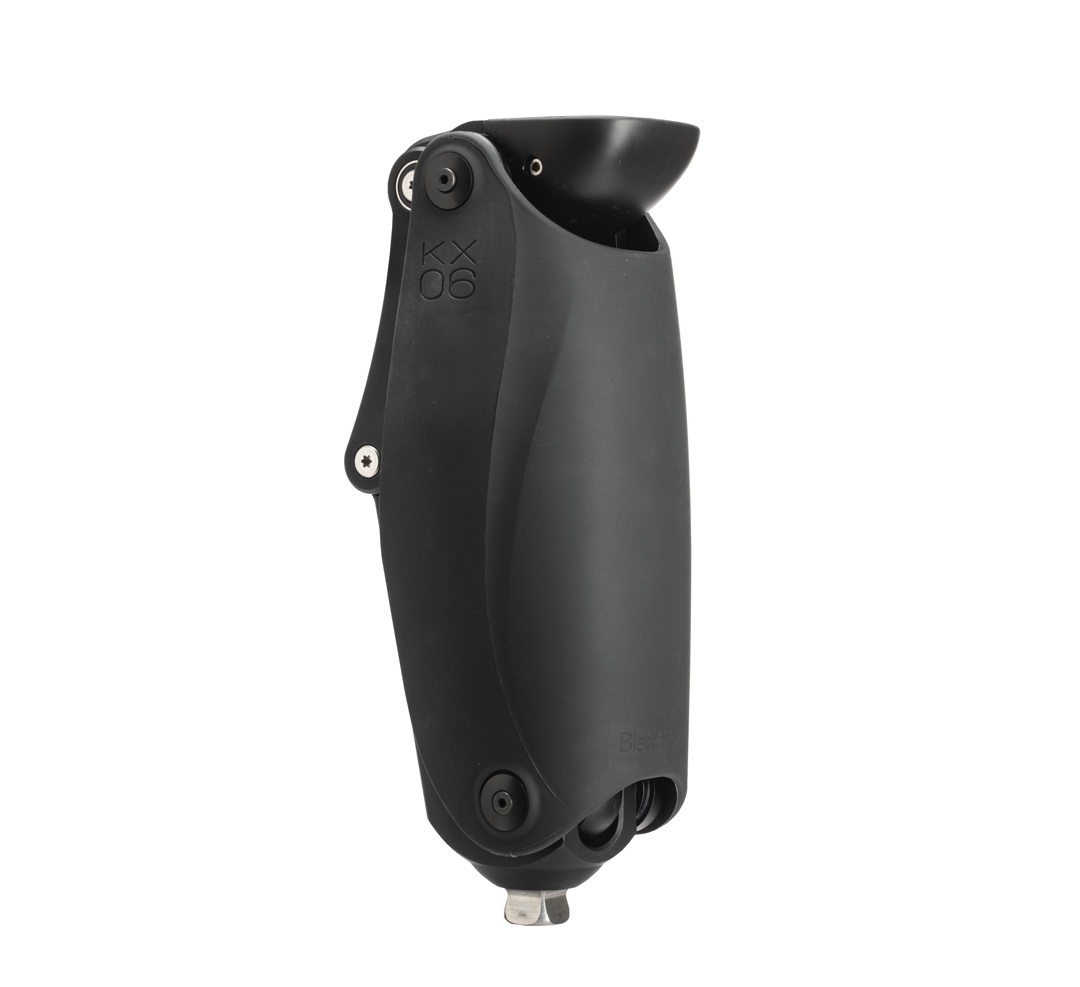

Blatchford's unique KX06 is a polycentric knee that's both robust and waterproof. The 4-bar design works in combination with a hydraulic swing, for a smoother and more predictable operation. The KX06 is perfect for high-impact and active users, who require outstanding geometric stability in all terrains.

The resilient and waterproof design of KX06 makes it ideal for users who are looking for a reliable knee that can withstand wet, muddy or dusty environments.

  • Build Height: 220mm
  • Knee Flexion: 160°
  • Control Unit: Hydraulic
Order

Meet the KX06

KX06 is designed to take you on your biggest adventures.

Built to withstand the most demanding activities and challenging environments, KX06 lets you take on everything from everyday living to the great outdoors.

Resilient and robust, KX06 provides the high activity user with a rugged and waterproof solution that combines outstanding stability with smooth and predictable operation. KX06 comes with a three year warranty.

Technical Info

Technical Info

KX06/07 measurements

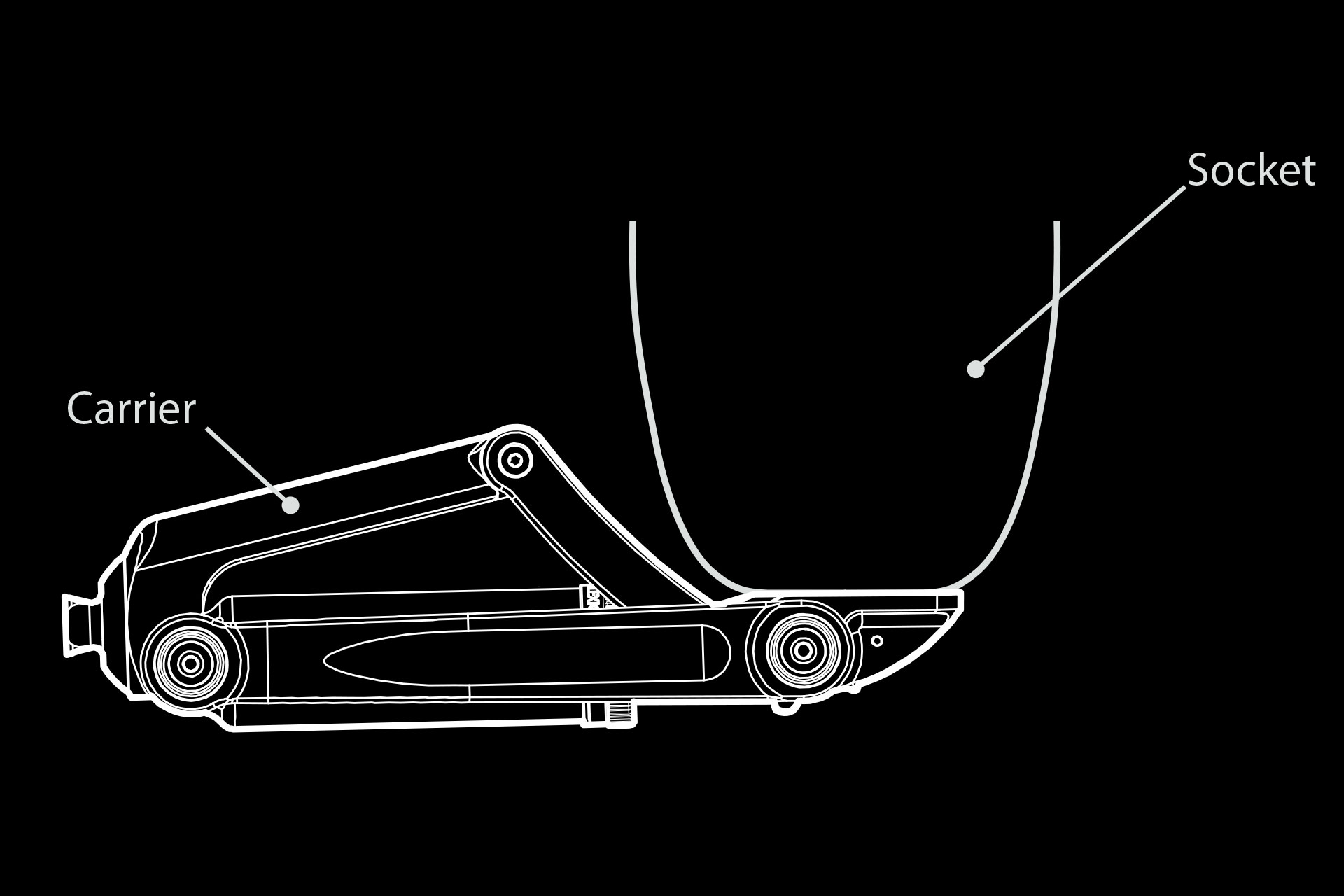

KX06/07 socket mount warning

  • Build Height: 220mm
  • Knee Flexion: 160°
  • Control Unit: Hydraulic
  • Product Weight: 1.34kg
  • Max. User Weight: 150kg at mobility level 3 (K3) or 145kg at mobility level 4 (K4)

Ensure socket does not contact the knee control or posterior link arms when fully flexed. The socket may contact the carrier only!

Key Features

Key Features of the KX06

Newkx06 Allterrain

All-terrain Stability

At heel strike, KX06’s unique design offers superb geometric stability. It's excellent on varied terrain, whilst retaining easy initiation of flexion. Additionally, the polycentric nature of KX06's 4-bar design, acts to shorten the limb length during swing phase, resulting in improved ground clearance, which helps to prevent trips and falls. Inherent hydraulic characteristics of the KX06 knee allow it to naturally adapt to the wearer's speed, providing a smooth and predictable experience on both slopes and stairs.
Newkx06 Robustdesign

Robust Design

The updated design of KX06 prosthetic knee is sleeker, tougher and shorter in build height. Its aluminium frame, with strengthened bearings, makes KX06 even more robust, and able to support a 150kg wearer. The self-aligning bearing system protects the cylinder from side loads, increasing the durability of this hydraulic knee.
New KX06 Comfort And Style

Comfort and Style

A stylish silicone cover provides a clean look, as well as protecting the KX06 prosthetic knee. The large, 160-degree flexion angle makes it easier for wearers to move their leg in confined spaces, such as in the car, or under a table.
Newkx06 Easytouse

Multiple User Modes

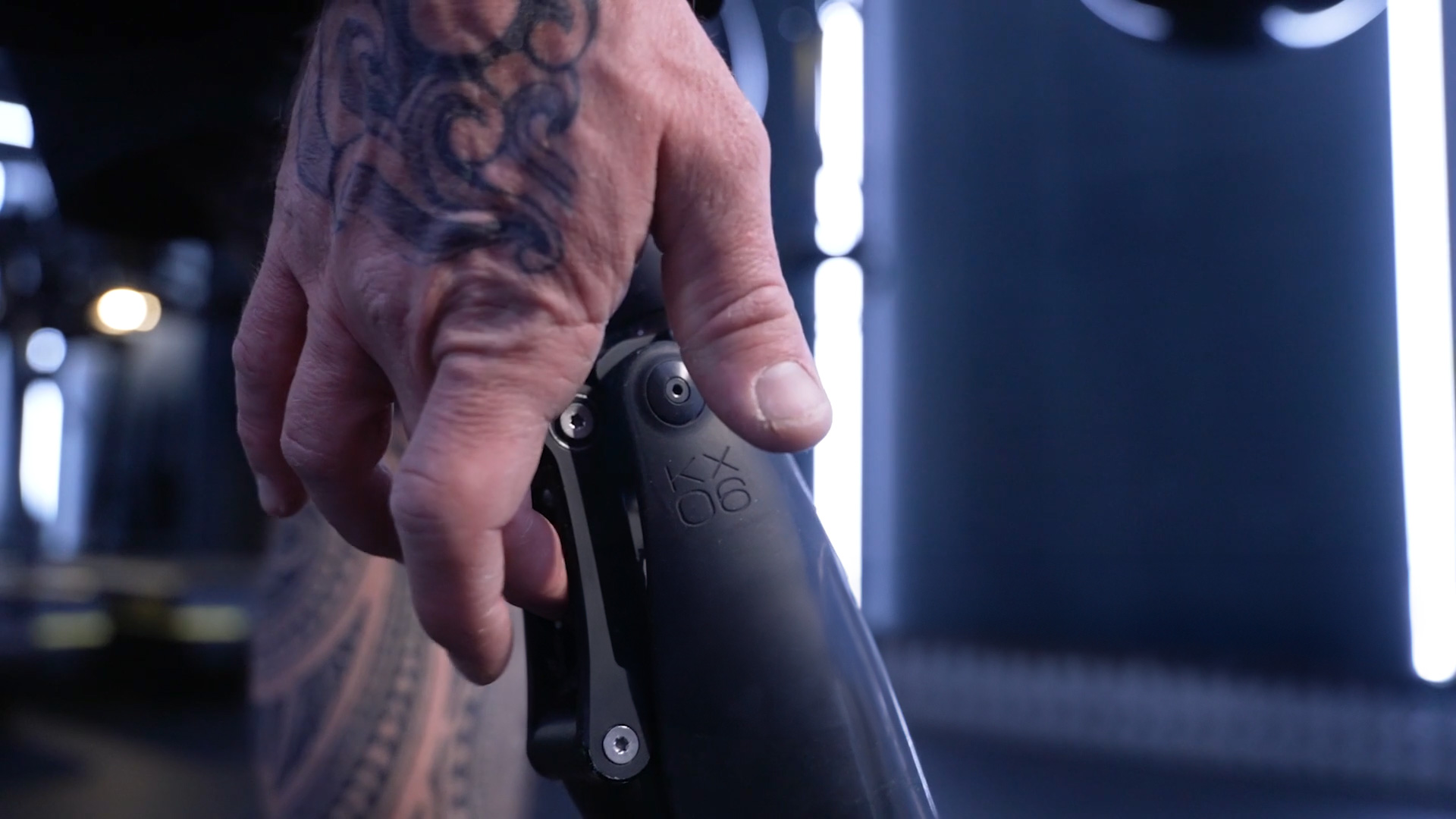

KX06 provides the opportunity to switch from normal operation to either flexion lock, or a 'free-swinging' cycling mode. Flexion lock, when engaged, locks the knee on flat or sloped terrain, and allows for more even loading. This not only delivers improved stability, but it also helps to improve the wearer's posture, by relieving pressure on their sound limb and lower back.
Newkx06 Waterproof

Easy to maintain

KX06 can cope with challenging environments, from water, to dirt, and sand. Don’t worry about that muddy bike ride – just rinse with fresh water and dry!

KX06 Case Study: Jack Eyers

Additional benefits of the KX06 prosthetic knee:

  • Sleek, robust design with protective cover
  • Latch to prevent self-adjustment of swing
  • Choice of proximal t-slot attachments
  • Shorter build height by 10mm
  • Strengthened & self-aligning bearings protect cylinder from sideloads
  • Waterproof

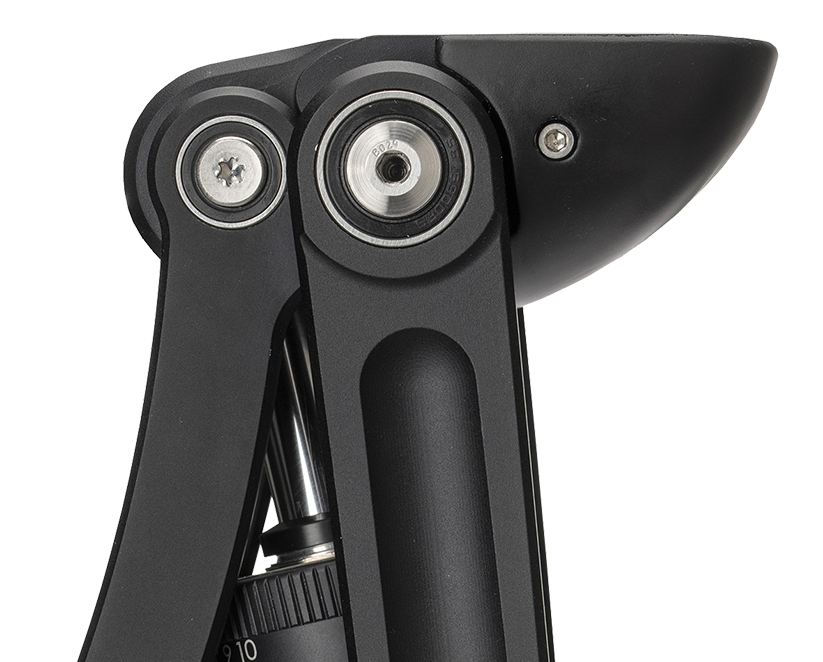

Kx07 Top

Ready to order?

If you think KX06 is the perfect polycentric knee for your patient, we have great news - it’s available to order now!

Contact Sales Team

Technical Support

Technical Support

Use the videos below to help guide you through some of the most common fitting tasks with the new KX06.

“I feel complete when I'm wearing the KX06”

- Jack Eyers, Paralympian

Resources

KX06 Resources

KX06 Brochure Thumbnail

KX06 Brochure

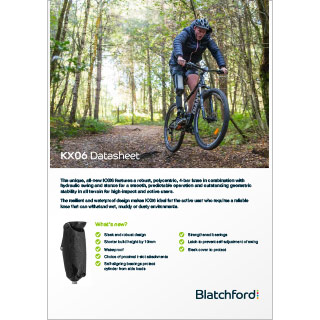

KX06 Datasheet Thumbnail

KX06 Datasheet EN
KX06 IFU Pk1 Thumbnail

KX06 Clinician's Manual (EN, FR, DE, IT, ES, NL, PL, PT, CS)
KX06 IFU Pk2 Thumbnail

KX06 Clinician's Manual (EN, SL, BG, HR, SK, HU, EL, LV, LT, ET)
KX06 IFU Pk3 Thumbnail

KX06 Clinician's Manual (EN, DA, NO, FI, SV, RU, ZH)

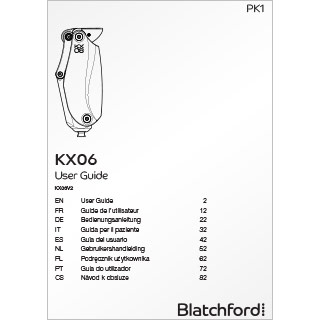

KX06 Userguide Pk1 Thumbnail

KX06 User Guide (EN, FR, DE, IT, ES, NL, PL, PT, CS)

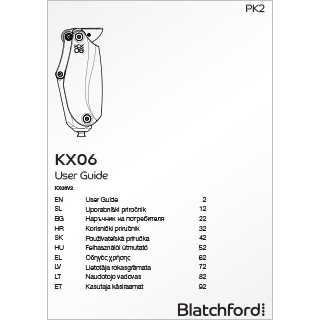

KX06 Userguide Pk2 Thumbnail

KX06 User Guide (EN, SL, BG, HR, SK, HU, EL, LV, LT, ET)

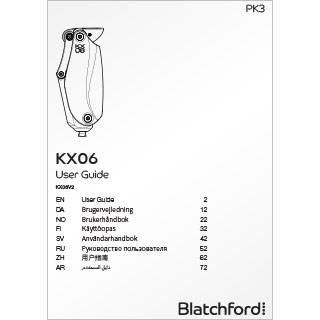

KX06 Userguide Pk3 Thumbnail

KX06 User Guide (EN, DA, NO, FI, SV, RU, ZH)

Clinical Evidence

KX06 Clinical Evidence

Improvements in Clinical Outcomes using four-bar, polycentric knees compared to monoaxial knees

  • Safety
    • Increased mean prosthetic minimum toe clearance2,4, reducing the likelihood of tripping.
    • Fully satisfies stance phase stability3
  • User satisfaction
    • Acceptable cosmetics for knee disarticulation amputees and trans-femoral amputees with long residua1
    • Meets all the design requirements for paediatric patients3

References

  • Full Reference Listing
    1. De Laat FA, van Kuijk AA, Geertzen JH, et al.
      Cosmetic effect of knee joint in a knee disarticulation prosthesis. J Rehabil Res Dev 2014; 51: 1545.
    2. Sensinger JW, Intawachirarat N, Gard SA.
      Contribution of prosthetic knee and ankle mechanisms to swing-phase foot clearance. IEEE Trans Neural Syst Rehabil Eng 2012; 21: 74–80.
    3. Andrysek J, Naumann S, Cleghorn WL.
      Design characteristics of pediatric prosthetic knees. IEEE Trans Neural Syst Rehabil Eng 2004; 12: 369–378.
    4. Gard SA, Childress DS, Uellendahl JE.
      The influence of four-bar linkage knees on prosthetic swing-phase floor clearance. JPO J Prosthet Orthot 1996; 8: 34–40.

Overview

KX06 Polycentric Knee
Product code KX06V2
Price: Please login to see prices.
KX06 Cylinder Adjuster Tool
Product code 940091
Price: Please login to see prices.
KX06V2 Knee Pad
Product code 235422
Price: Please login to see prices.
Blatchford Large Limb Bag
Product code 936267
Price: Please login to see prices.
Blatchford Small Limb Bag
Product code 936268
Price: Please login to see prices.
