Regal S500 Knee
*Available to UK customers only*
Regal S500 Knee

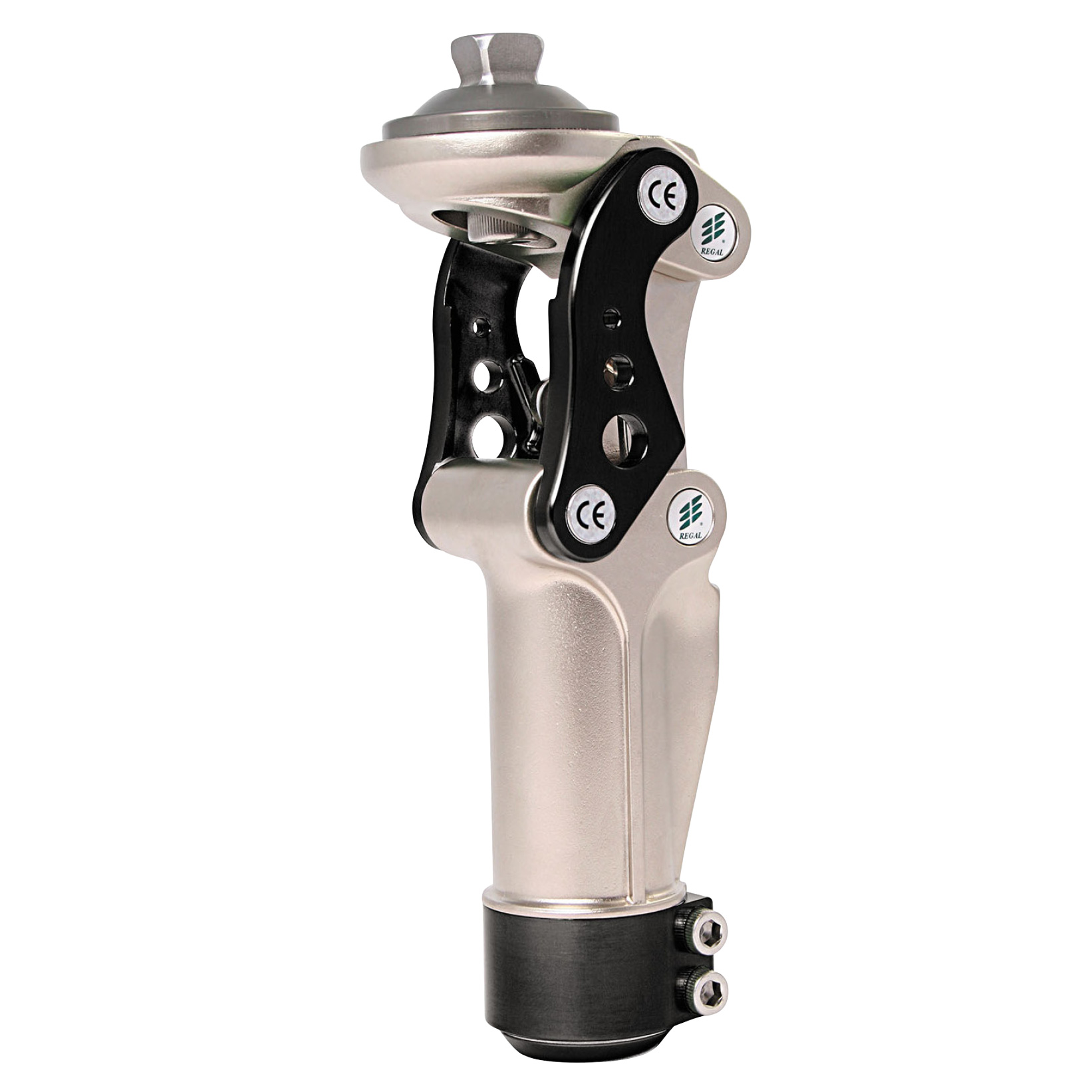

A slim profile, polycentric knee for moderate activity users.
Features
- Polycentric knee joint with pneumatic swing phase control and additional adjustable extension spring assist.
- Independent adjustment of pneumatic flexion and extension resistances.
- Polycentric design provides increased ground clearance during swing, inherent geometric stability during stance and minimal protrusion when sitting.
- A shifting and rotating proximal pyramid allows for alignment adjustments.
- Slim profile results in a superb cosmetic finish.
- Various socket adaptors available provide a range of set up options.
- Activity level 2
- Activity level 3
Regal Knee Specifications
S200 | S400 | S500 | |
Max. User Weight: | 100kg | 125kg | K2: 125kg K3: 100kg |
Activity Level: | 1-2 | 1-2 | 2-3 |
Component Height: | 358g | 678g | 882g |
Build Height: | 58.5mm | 108mm | 172mm |
Control Unit: | SAKL | SAKL | Pneumatic Flexion and Extension control plus additional extension spring assist |
Flexion Angle: | 180° | 135° | 135° |
Material: | Aluminium | Aluminium | Aluminium |
